16-32mm PEX Fittings PEX AL Pipe Connector Brass PEX Press Fitting
738-3
Affordable PEX fittings perfectly suited for heating system installation.
Delivery
FOB
minimum order
3000 pieces
Supply Ability
500000pieces / Month
Country of Origin
SHANGHAI,NINGBO
Stock Time
25Day
Quantity
Product Information
The 16-32mm Factory Price OEM Customize PEX Fittings PEX AL Pipe Connector Brass PEX press fitting elbow for Heating System are the perfect solution to any heating system installation that requires secure and reliable connections.
These fittings have the added advantage of being customizable and can be personalized to fit different needs.
They feature a PEX AL pipe connector and brass PEX press fitting that guarantees durability and longevity.
These fittings are also affordable, making them a great choice for both residential and commercial use.

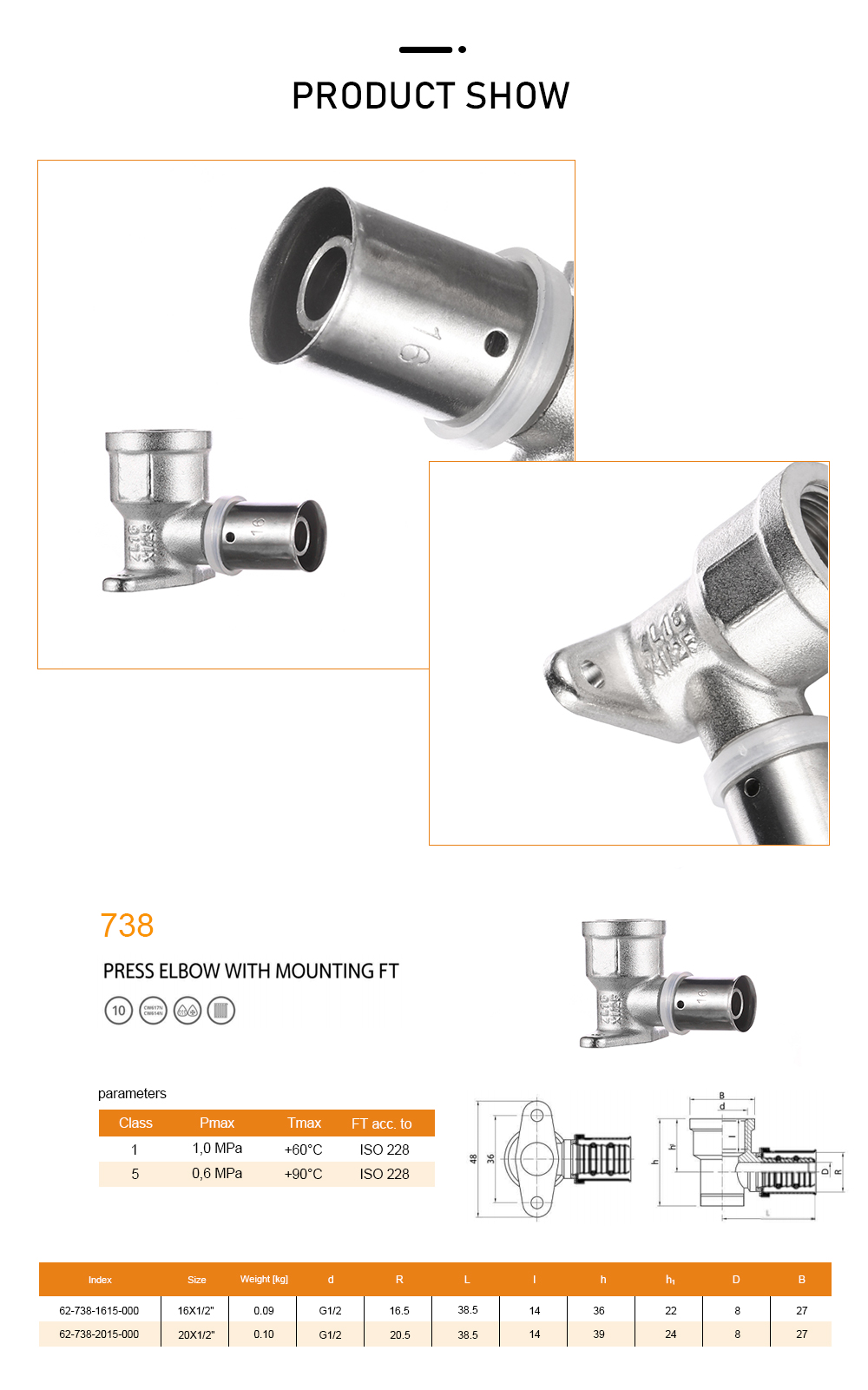

The Pex female seated elbow 1/2 Inch is equipped with a copper ring that is then pushed to the end of the tube over the fitting, ensuring secure connections.

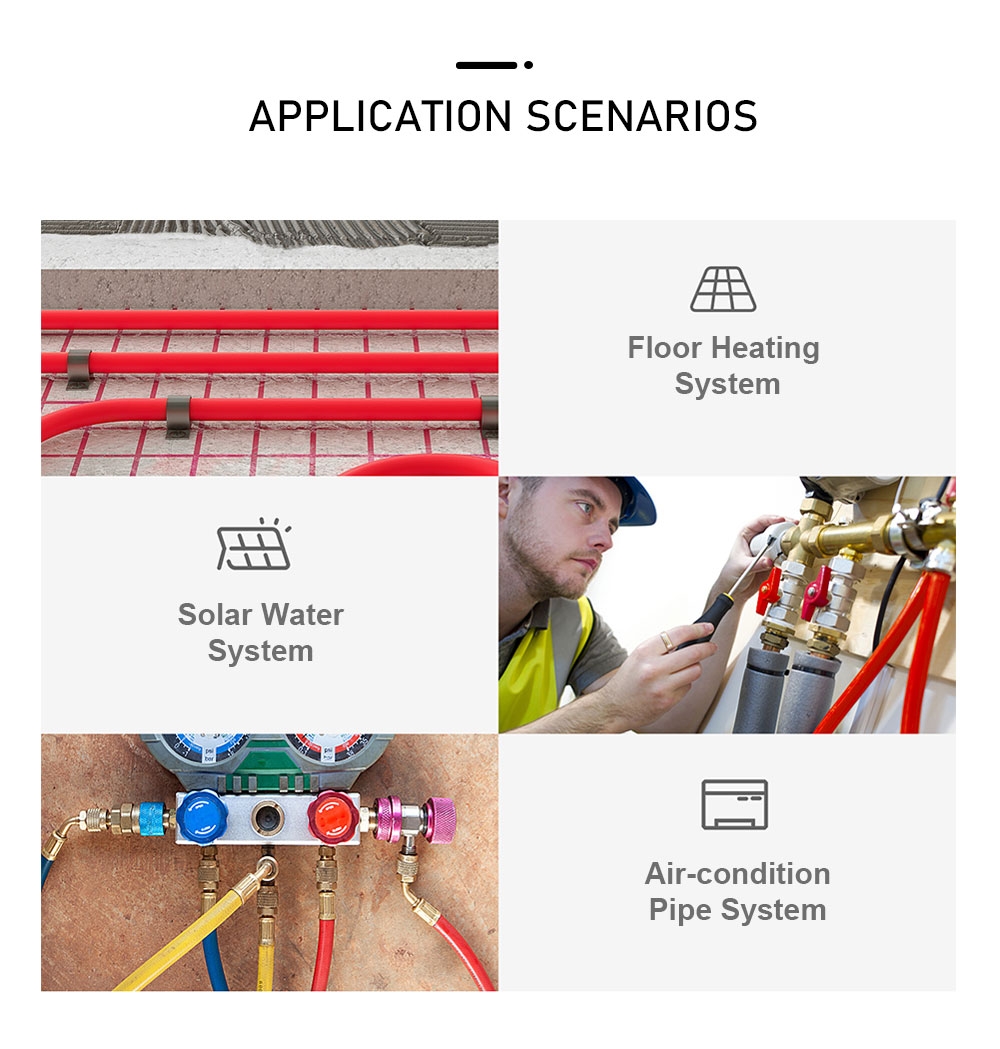

These fittings are perfect for use in heating systems for residential and commercial buildings, including snow melting systems, and any similar application where users need to join PEX piping.
Gant System Pressed Fittings Are Made Of A Durable Brass Alloy - Cw617 - And Include The Dual Protection Of Nbr Seals To Ensure Long-Term Operation Without Leakage, While Stainless Steel Sleeve Packing Guarantees Durability.
Nozzle And Pressed Sleeve Construction With Precisely Executed U-Joints Ensure Tight And Secure Piping With No Risk Of Pipe Slippage During Use.
Pressed Fittings Provide Extremely Easy And Fast Installation For Professionals, And Our Fittings Are Available In Many Versions And Sizes, Making The Entire Installation Process Simple And Quick To Perform Or Modify.
MATERIALS
BODY:CW617N brass
COMPRESSION SLEEVE:stainless steel AISI304
O-RINGS:NBR
SLEEVE SOCKET:polypropylene
BODY:CW617N brass
COMPRESSION SLEEVE:stainless steel AISI304
O-RINGS:NBR
SLEEVE SOCKET:polypropylene
The Pex-Al-Pex Compression Fitting (U-Shape) Is Specially Designed For Pex-Al-Pex Multi-Layer Pipes.
It Is An Innovative Fitting That Was Developed According To International Advanced Technology And Has Become A Mainstream Fitting For Pex-Al-Pex Multilayer Pipes In Europe And The United States.

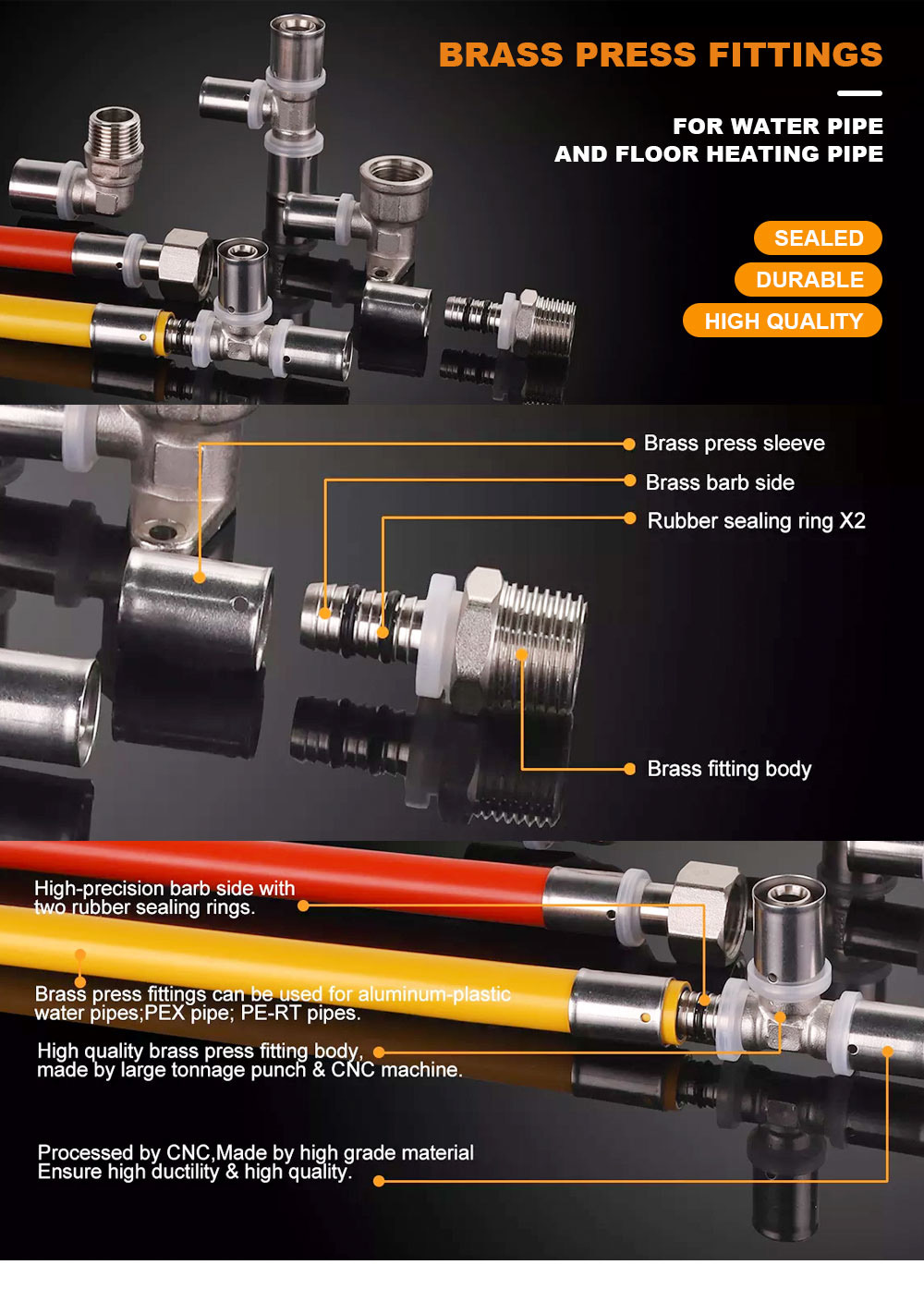

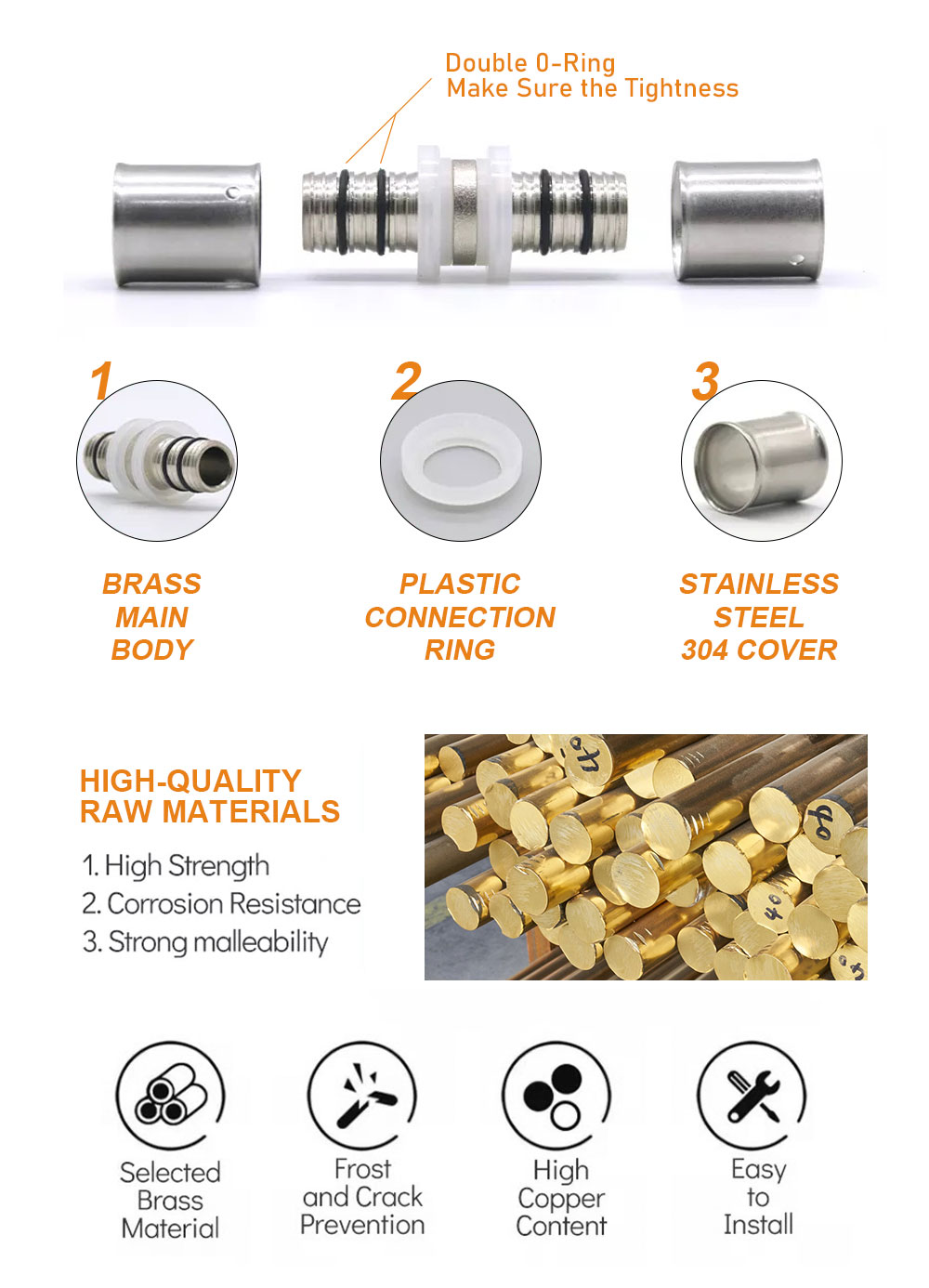

Pex-Al-Pex Stamped Fittings (U-Shape) Consist Of Four Parts: Brass Body, Stainless Steel Compression Sleeve, Epdm O-Ring And Insulator:

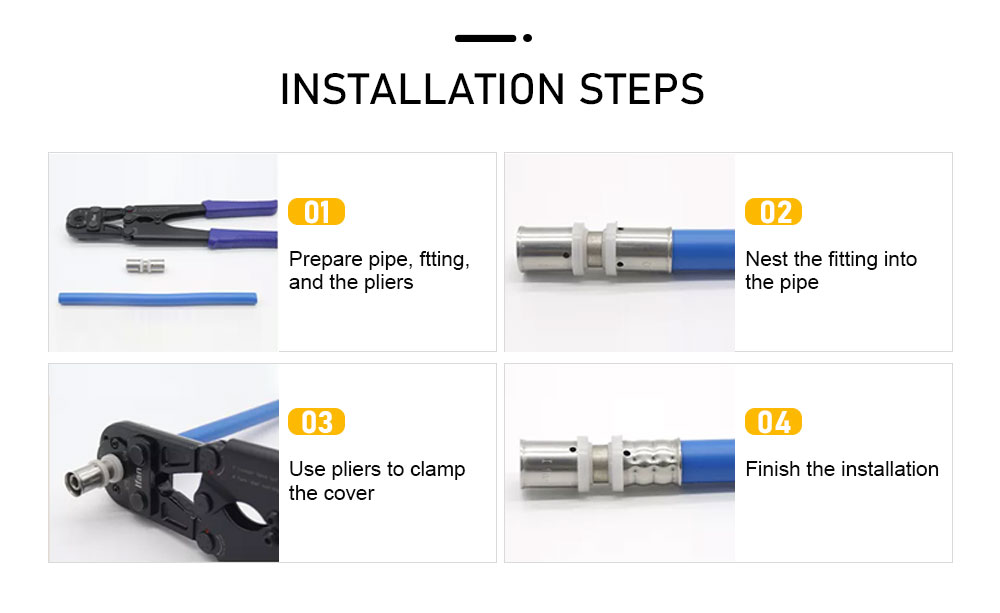

To Connect Pex-Al-Pex Pressed Fittings, A Special Pressing Tool Should Be Used. By Using Special Pressing Tools, The Permanent Compressive Plastic Deformation Of The Stainless Steel Pressing Sleeve Makes Pex-Al-Pex Pressed Fittings More Stable And Secure In Long-Term Use.
The Double Epdm O-Ring Design Provides Perfect Sealing Performance And Ensures 100% Leak-Free Piping System During Long-Term Use.

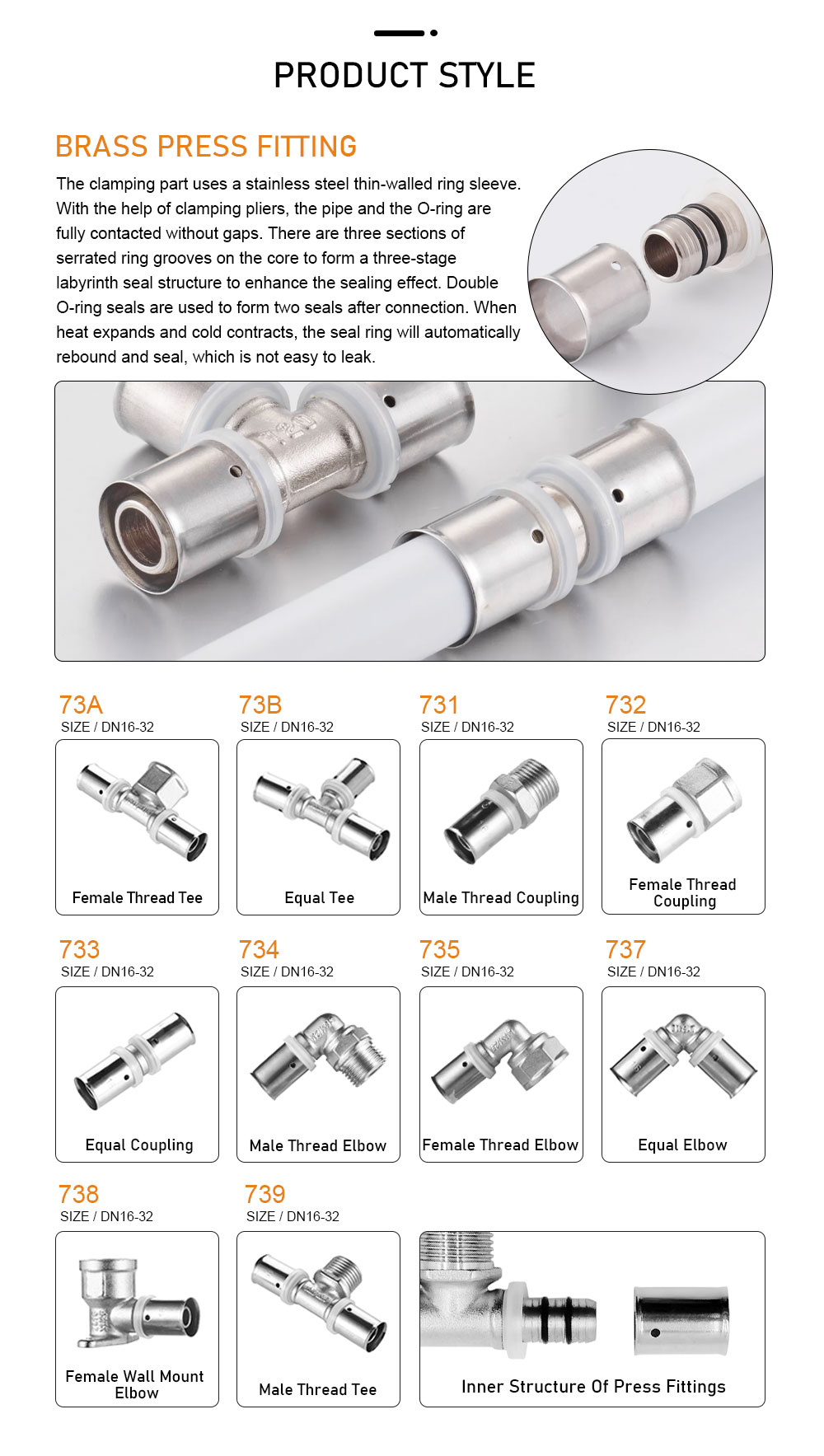

Pex-Al-Pex Pressed Fittings Are Available In Diameters Of 16 Mm, 20 Mm, 25 Mm Or 26 Mm And 32 Mm In Conventional Configurations: Couplers, Reducer Couplers, Female Or Male Couplers, Elbows, Reducer Elbows, Female Or Male Elbows, Galvanized Female Elbows, Tees, Reducer Tees, Female Or Male Tees, End Caps, Etc.
Main Features:
1. Pex-Al-Pex Pressed Fittings Are Designed For Pex-Al-Pex Multilayer Pipes Only, Not For Pex Pipes.
2. Pex-Al-Pex Pressed Fittings Are"U"Shaped And Can Be Connected By U-Shaped Jaws.
3. Can Provide Special Pressing Tools For Pex-Al-Pex Pressed Fittings.

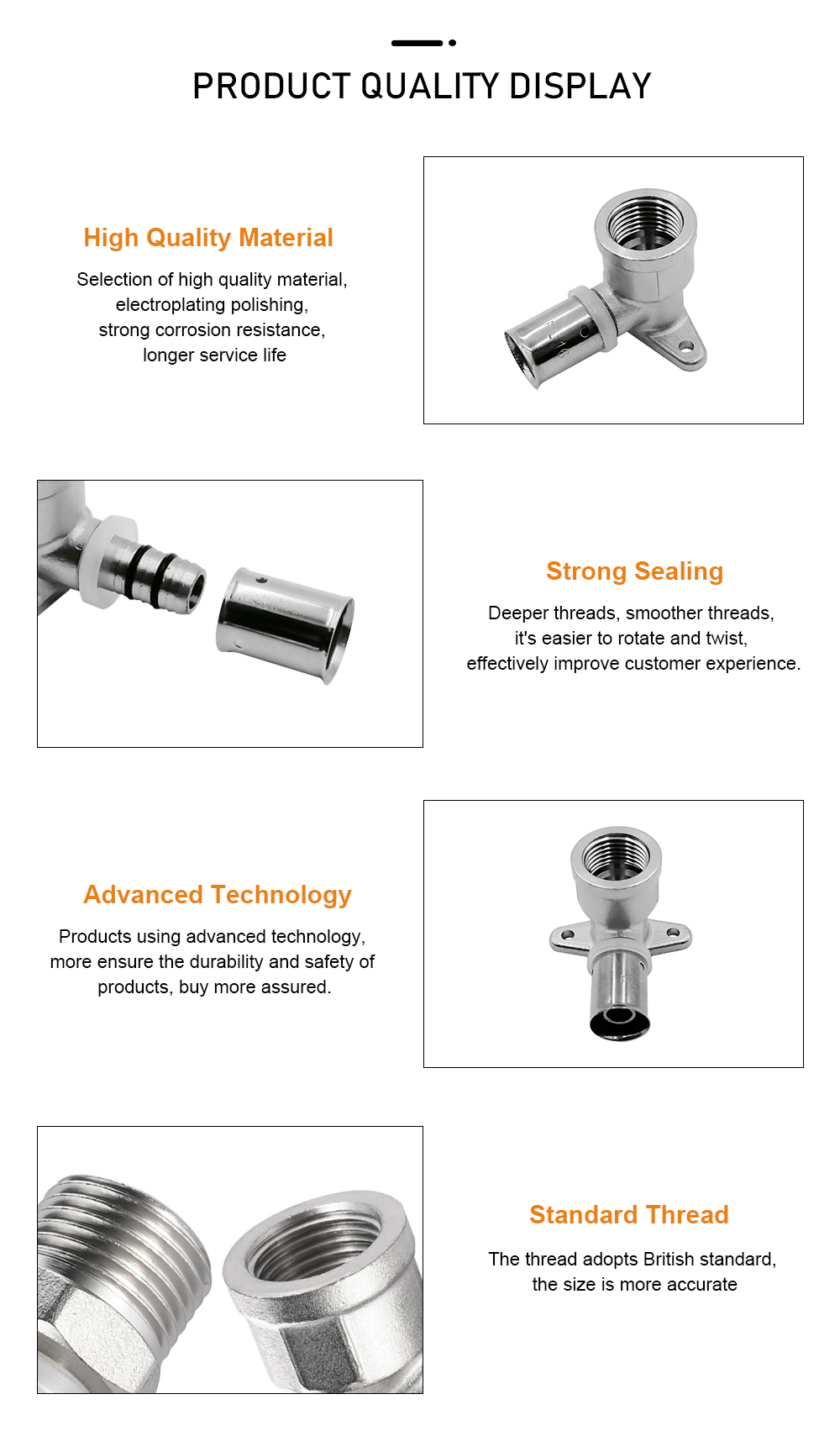

4. Pex-Al-Pex Pressed Fittings Are Made Of High Quality Brass Materials ，Lead-Free Brass.
5. Pex-Al-Pex Pressed Fittings Are Manufactured According To Standard And Are Compatible With All Types And Brands Of Pex-Al-Pex Multi-Layer Tubes Manufactured By Other Suppliers According To The Same Standard.
6. Pex-Al-Pex Pressed Tubing Is Available In Two Color Options: Primary Color Or Nickel Plated.
