Cross-Linked Polyethylene Plastic Aluminum Composite Multilayer Pex Al Pex Pipe
PEX Al PEX Pipe-1
PEX Pipe for Residential & Commercial Potable Water. Aluminum layer increases rigidity and shape retention, suitable for hydronic space heating.
Quantity
Product Information
GANT
20+YEARS
PROFESSIONAL PIPE & FITTING MANUFACTURER
GUERKANG PRODUCTS
ARE SOLD
ALL OVER THE WORLD
IN VARIOUS
COUNTRIES AND REGIONS
20+YEARS
PROFESSIONAL PIPE & FITTING MANUFACTURER
GUERKANG PRODUCTS
ARE SOLD
ALL OVER THE WORLD
IN VARIOUS
COUNTRIES AND REGIONS
| Product Name | Pex Al Pex Pipe |

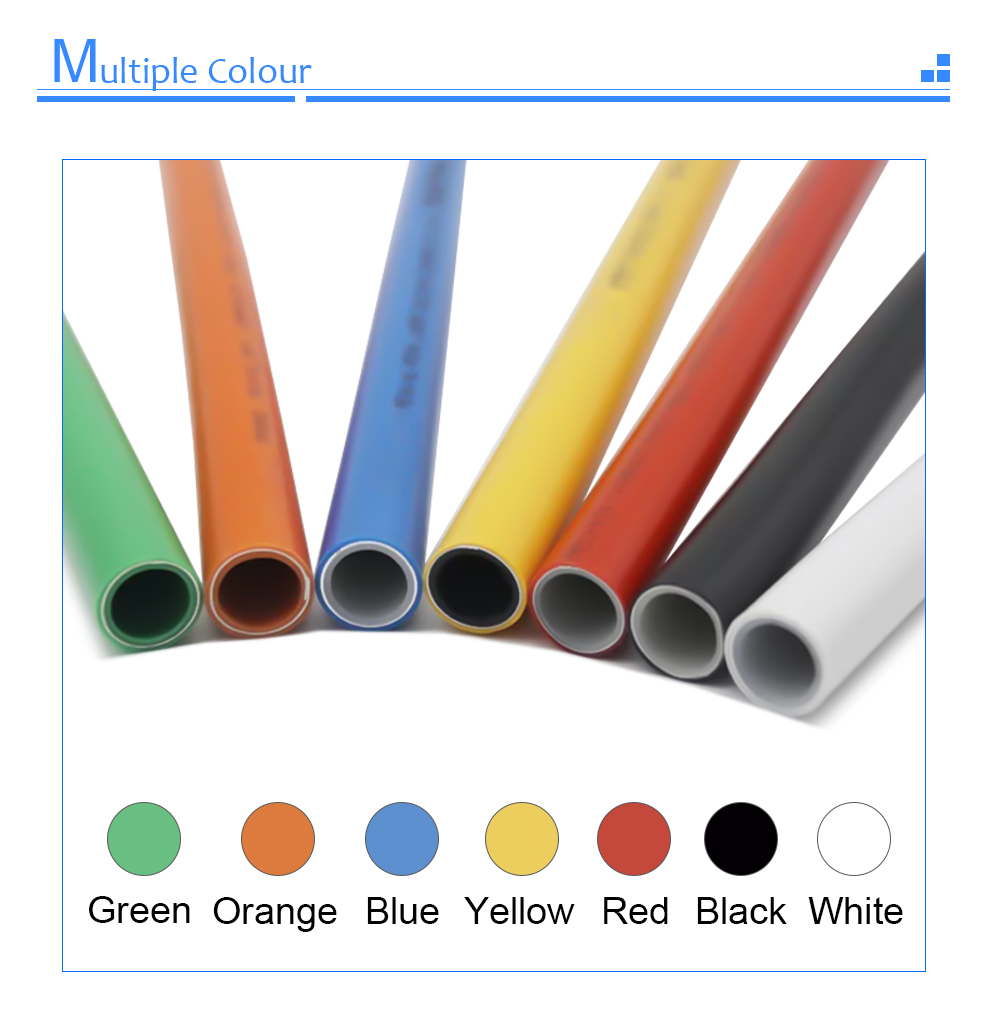

| Color | Natural /Customized |
| Working Pressure | 0.86mpa-1.25mpa |
| Size | 16-32mm |
| Material | Pex + Aluminium |
| Usage | Hot Water Supply And Heating |
| Performance | Good Flexibility, Easy To Bend |
| Certification | Iso15875-2-2003,Gb/t 18992.2-2003 |
| Health Guarantee | The Interior ls Smooth, Not Easy To Corrode, And Does Not Form Scale |
| Work Temperature | -20℃-120℃ |
| Feature | Corrosion Resistant |
| Connection | Brass Fittings |
| Package | Carton +opp Bag |
PEX Pipe is suitable for both residential & commercial potable water.

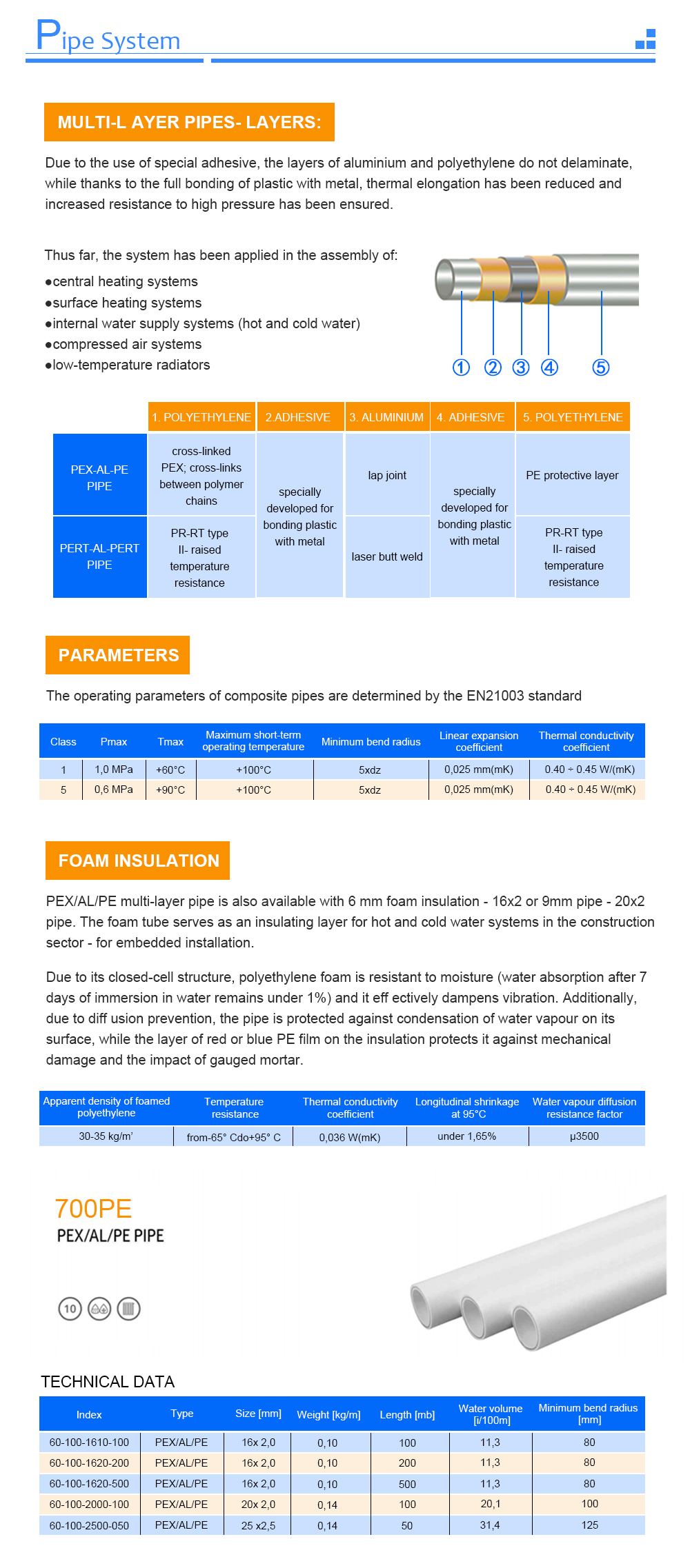

PEX-Aluminum-PEX, also known as PEX-AL-PEX, is an advanced composite pipe made from aluminum and cross-linked polyethylene plastic.
It contains an aluminum layer between two layers of PEX, giving the pipe added rigidity, shape retention, and resistance to thermal expansion.

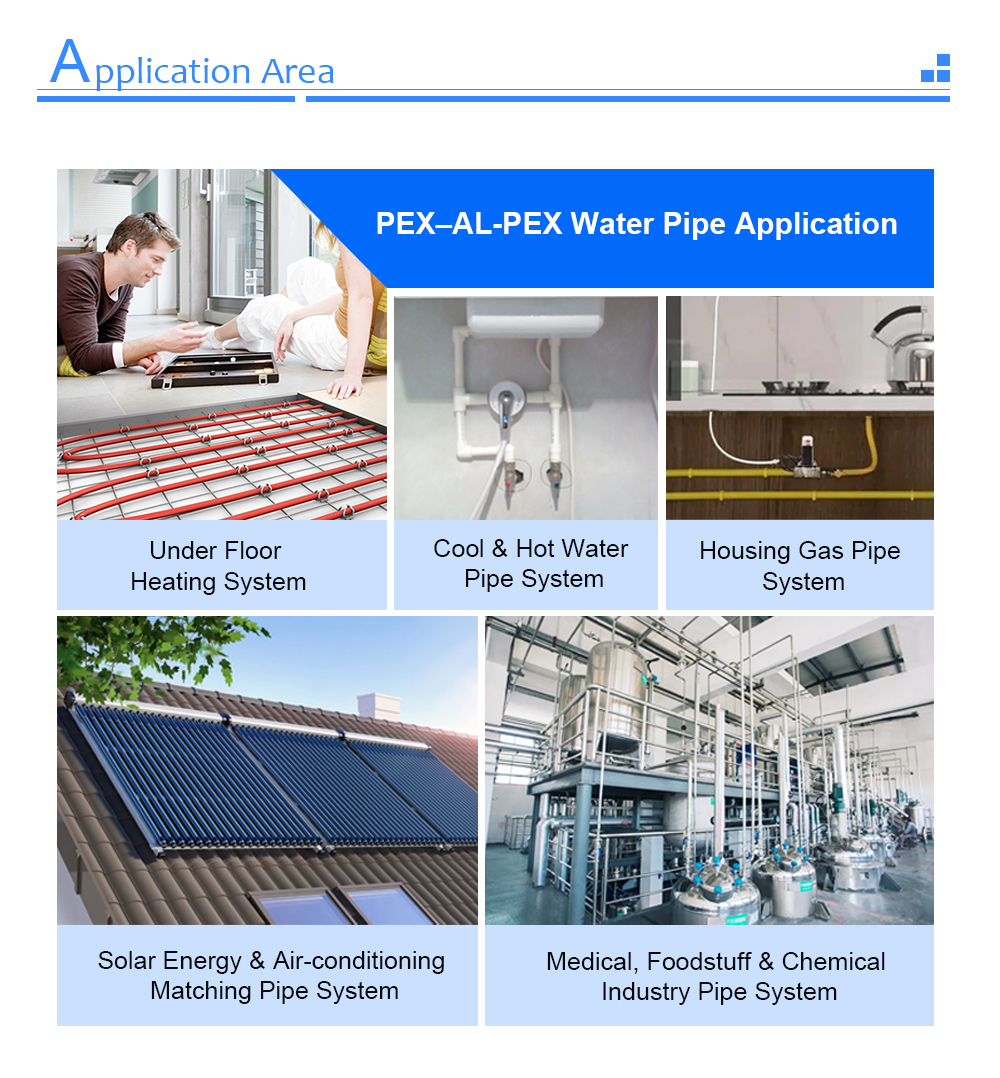

PEX-AL-PEX pipe is ideal for hydronic heating systems due to its natural oxygen barrier created by the aluminum layer, which prevents damage and corrosion.
| Product Parameter | |
| Brand | GANT |
| Product Name | Pex Al Pex Pipe |
| Size | 1216/1418/1620/2025/2632 |
| Function | High Strength |
| Long Lasting | |
| High Temperature Resistance | |
| Pipe Size | Pipe Inner Diameter | Pipe outer Diameter |
| 1216mm | 12mm | 16mm |
| 1418mm | 14mm | 18mm |
| 1620mm | 16mm | 20mm |
| 2025mm | 20mm | 25mm |
| 2632mm | 26mm | 32mm |

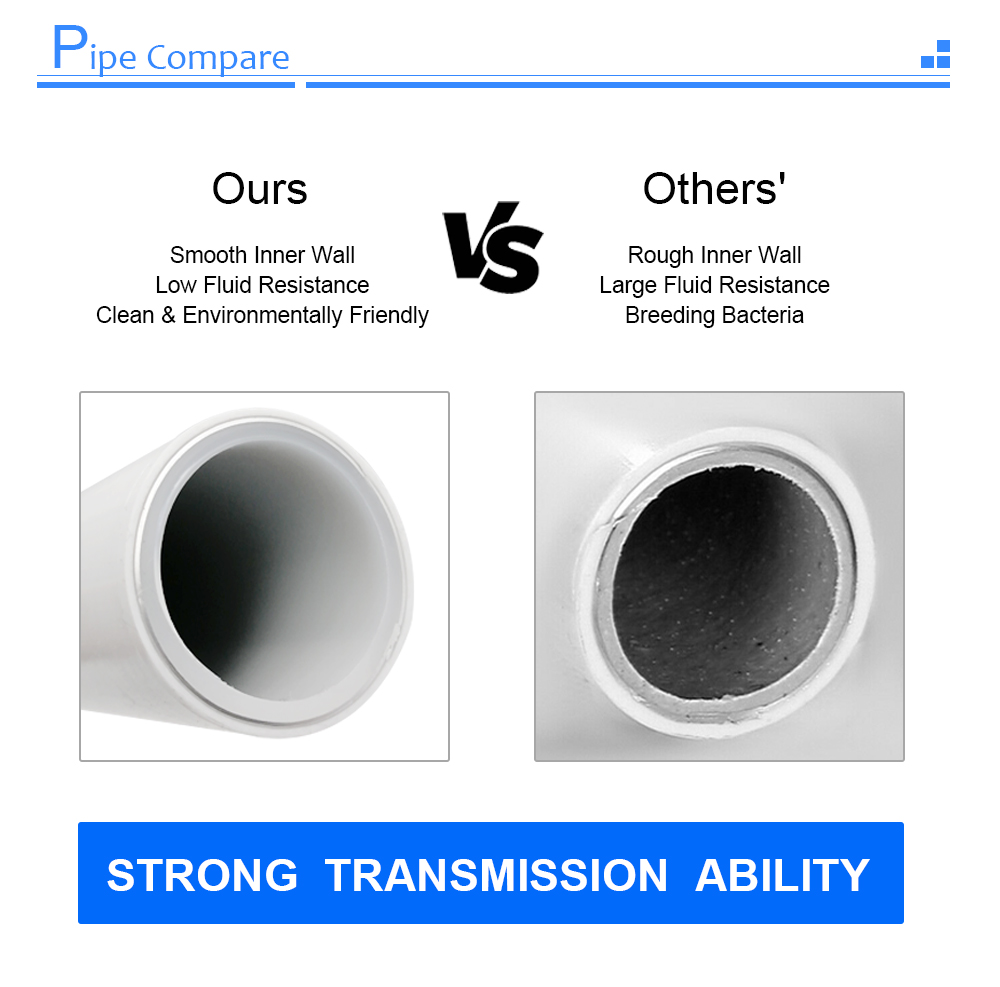

The larger inside diameter of PEX-AL-PEX results in less friction loss, ensuring optimal water flow without pressure loss. The advanced design and high-quality material composition of PEX-AL-PEX pipes provide significant advantages over traditional piping, including durability, ease of installation, and low maintenance costs.

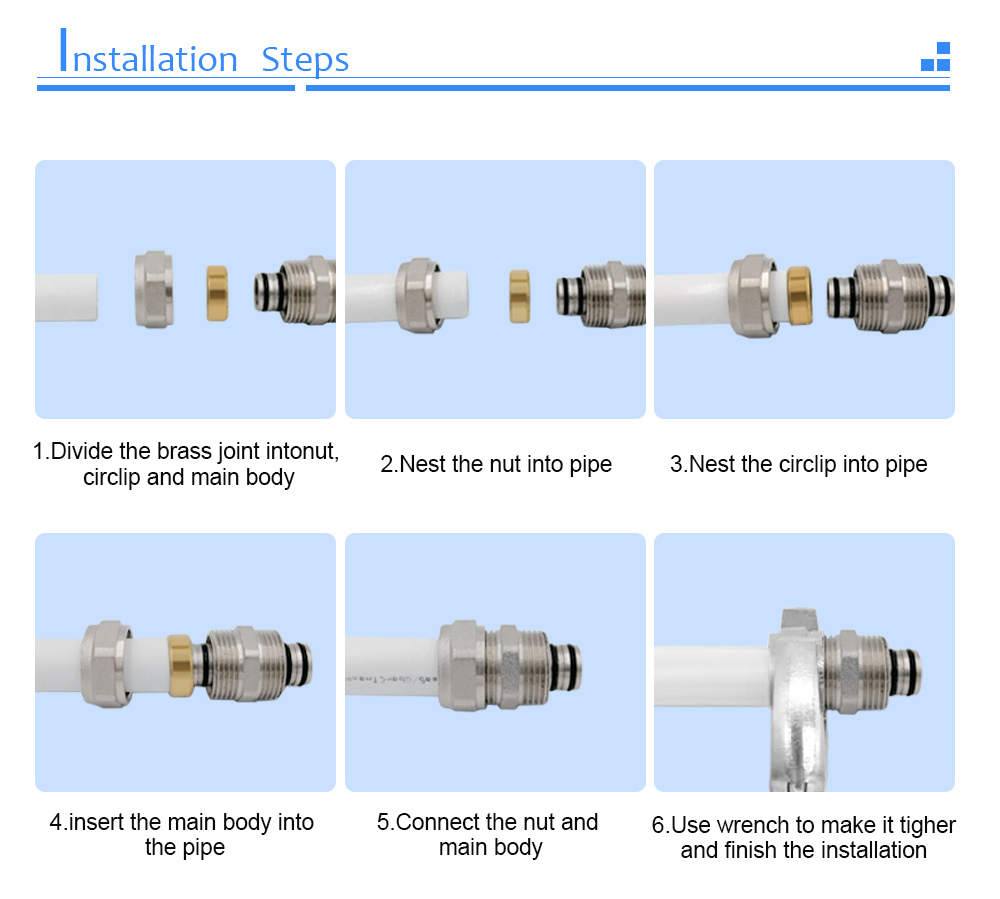

Available with compression assemblies and press fittings, PEX-AL-PEX pipe is an excellent choice for a wide variety of heating and plumbing applications, offering cost savings, extended performance, and easy installation.
