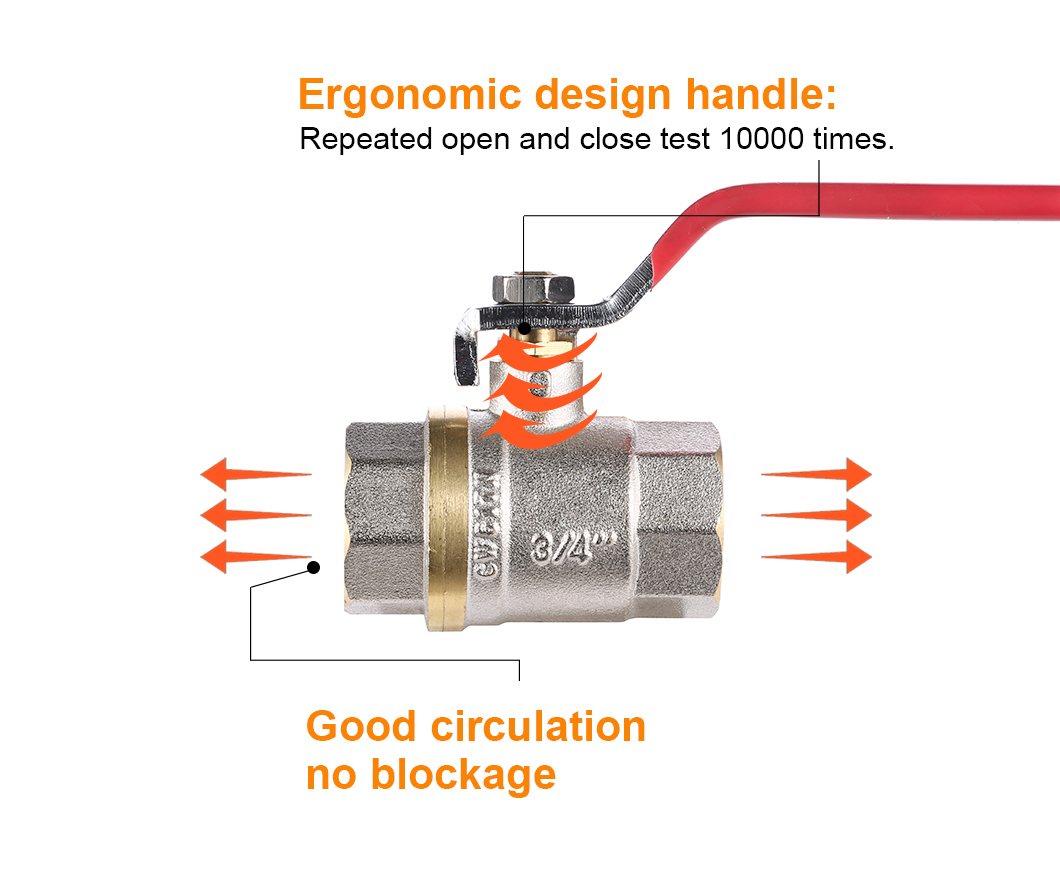

Brass Ball Valve
Brass ball valve is an important fluid control device,It has a wide range of applications in various fields such as industry, commerce and household. Its unique design has many advantages that make it ideal for fluid control.

Advantage：

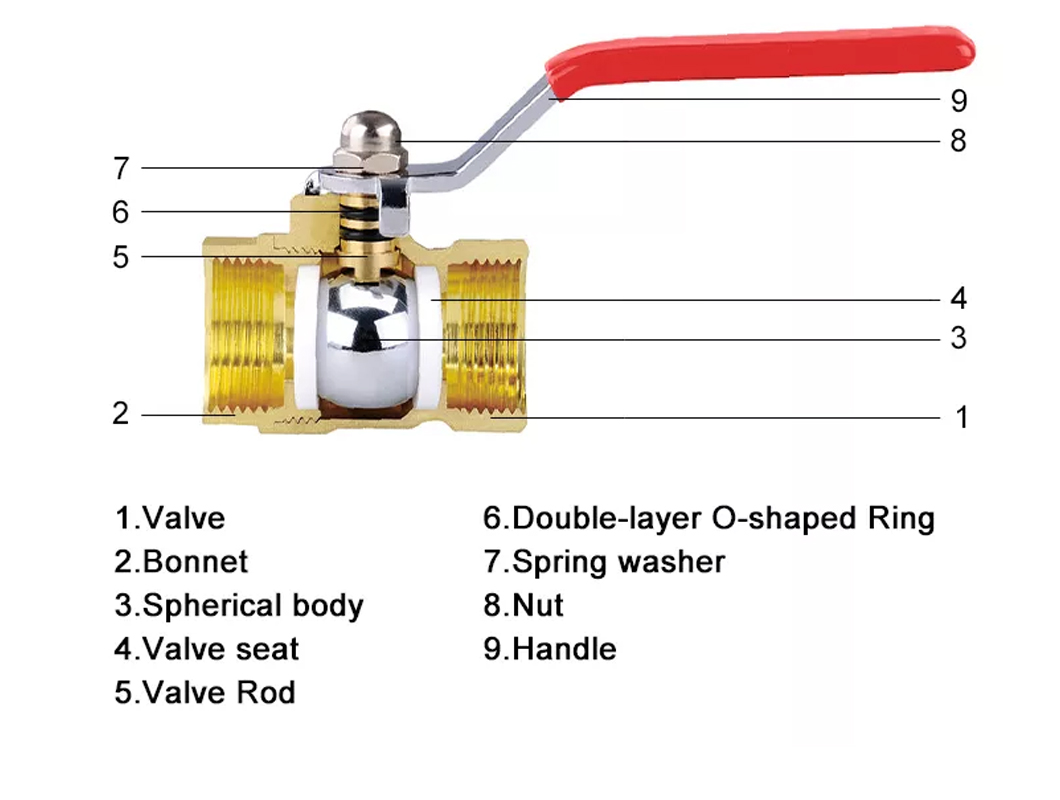

1. Simple structure: The ball valve consists of a rotating sphere and two sealing surfaces. Its structure is relatively simple and easy to manufacture and maintain.

2. Quick switch: The operation of the ball valve is quick, just rotate 90 degrees, it can be completely closed to fully open, or vice versa.

3. Small fluid resistance: The internal channel of the ball valve is a straight-through design, and the resistance when the fluid passes is small, which can provide high flow capacity.

4. Good sealing: The ball valve adopts elastic or metal sealing structure, which can provide good sealing performance and reduce the risk of leakage.

5. Strong corrosion resistance: The ball valve can choose different material balls and sealing materials according to the requirements of the working medium to ensure that it has good corrosion resistance.

6. High temperature and high pressure resistance: The ball valve can adapt to the high temperature and high pressure working environment, and has high pressure resistance and heat resistance.

7. High reliability: the ball valve has high working reliability, flexible and reliable operation, and is suitable for long-term use and frequent switching occasions.

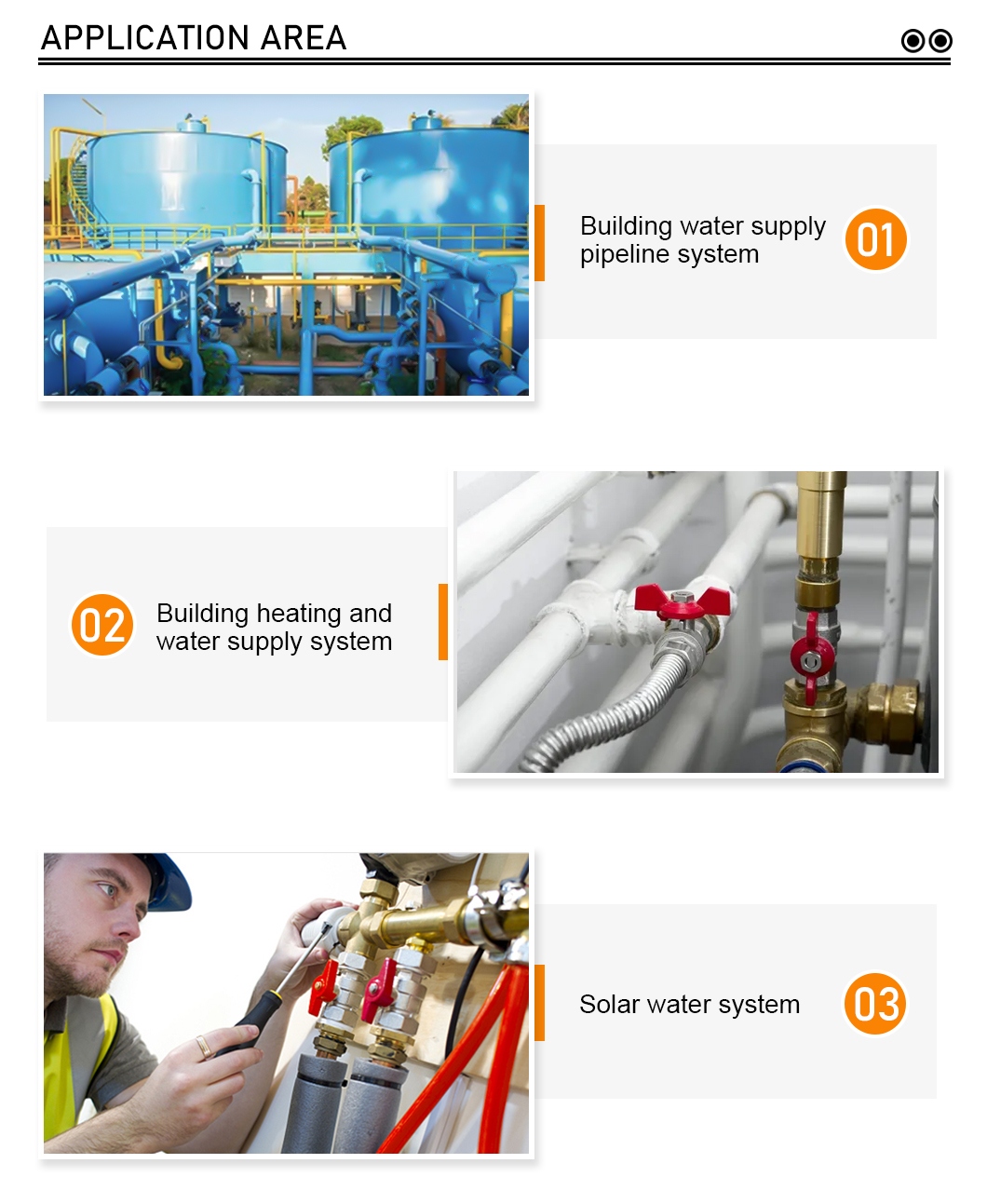

Application

GANT System ball valves are designed for controlling the flow of:
-hot and cold water supply systems(including drinking water)
-central heating systems(water in the central heating system should meet the requirements of the PN-C-046071993
standard)
-cooling and solar systems filled with 50% glycol solution
GANT System ball valves can be fitted in vertical,horizontal and inclined pipelinesat any position.Serving as shut-off
valves, GANT ball valves can operate either "fully opened" or "fully closed".
Additionally,the PHA-006 ball valve is fitted with a filter insert,which enables the mechanical extraction of
contaminants.It should be insteelled in the direction of f ow.Instalation must allow freegravitational separation of
impurities in the filtering part;recommended position of the valve:"plug of the filter element pointing downwards"

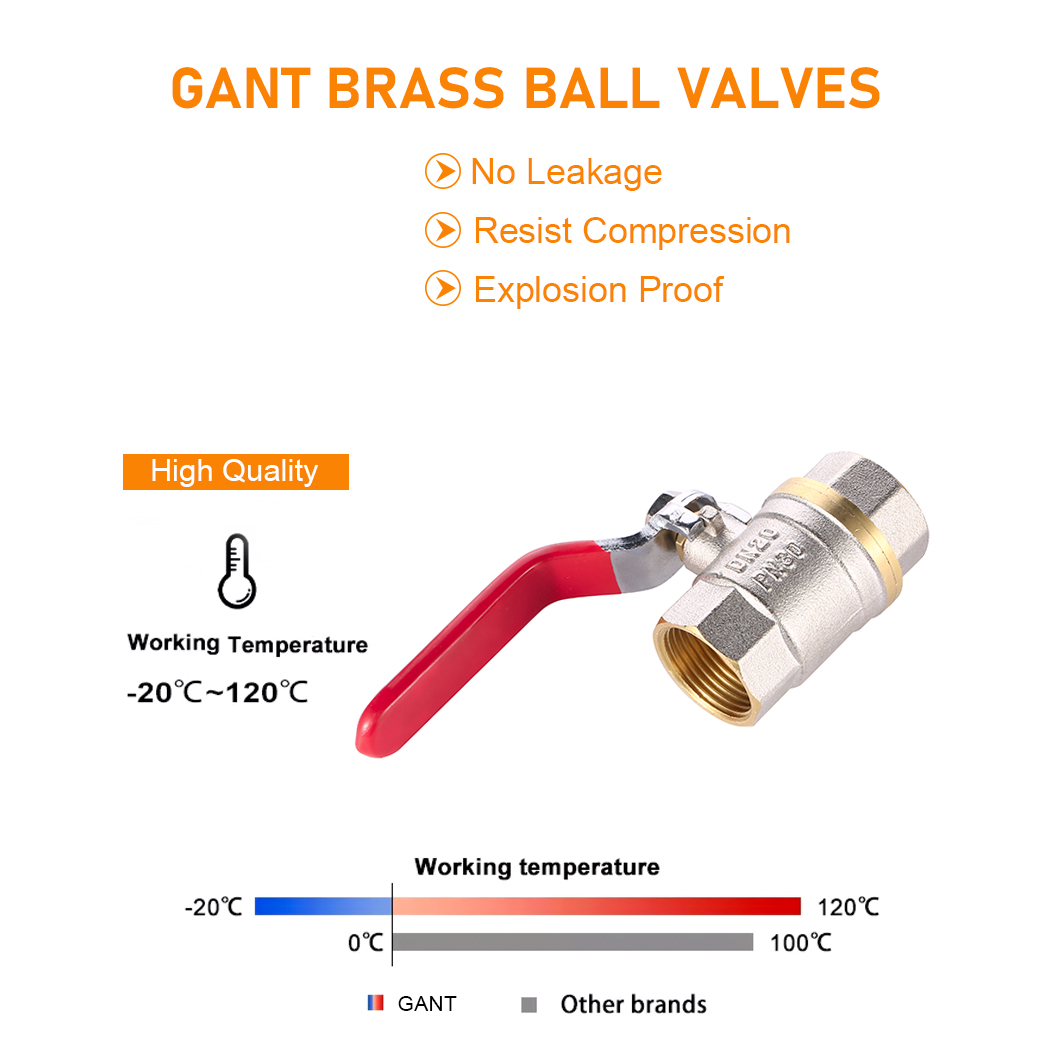

Maximum Operating Parameters

·temperature:+150℃
·pressure:30 MPa(30bar)

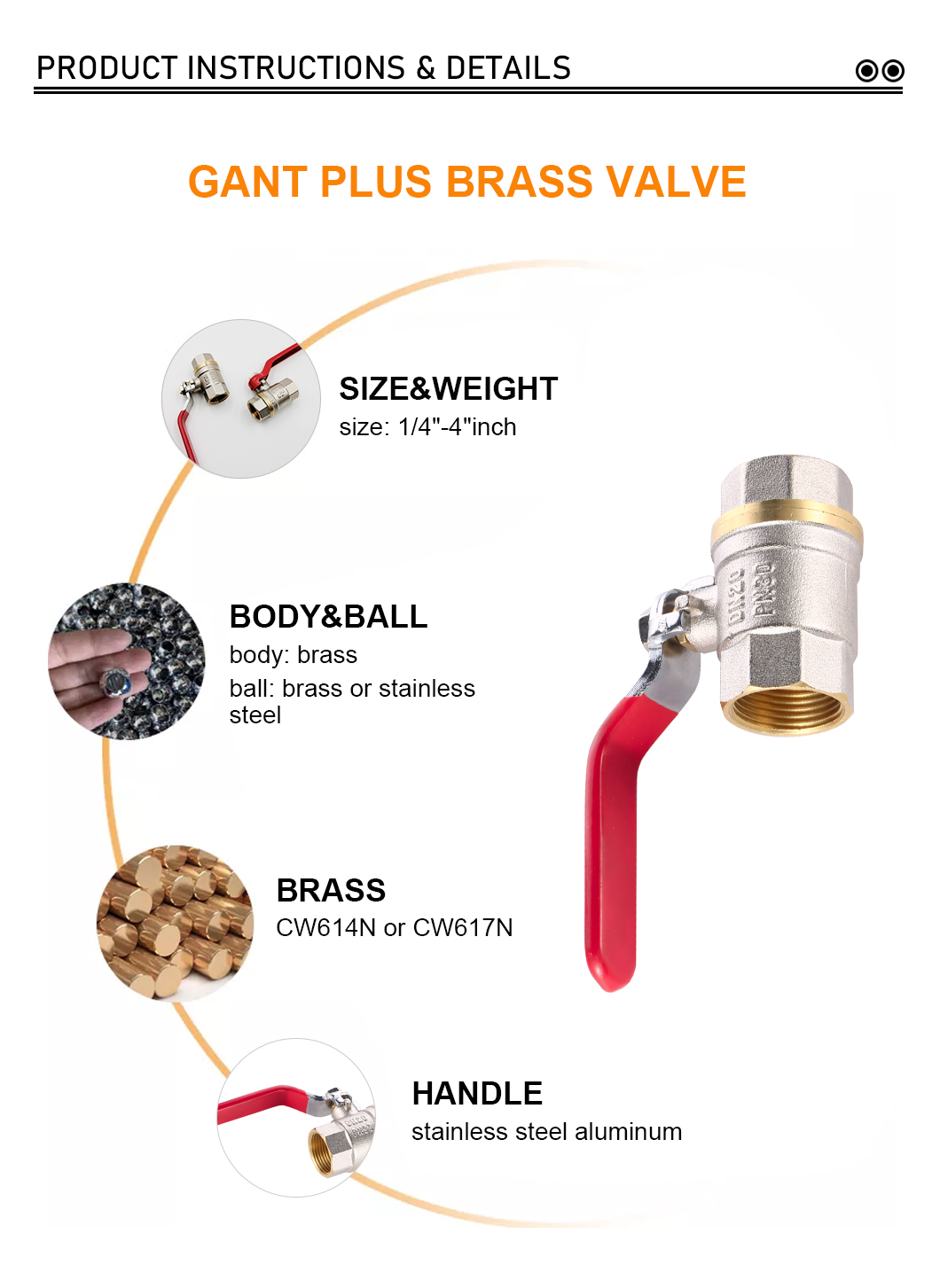

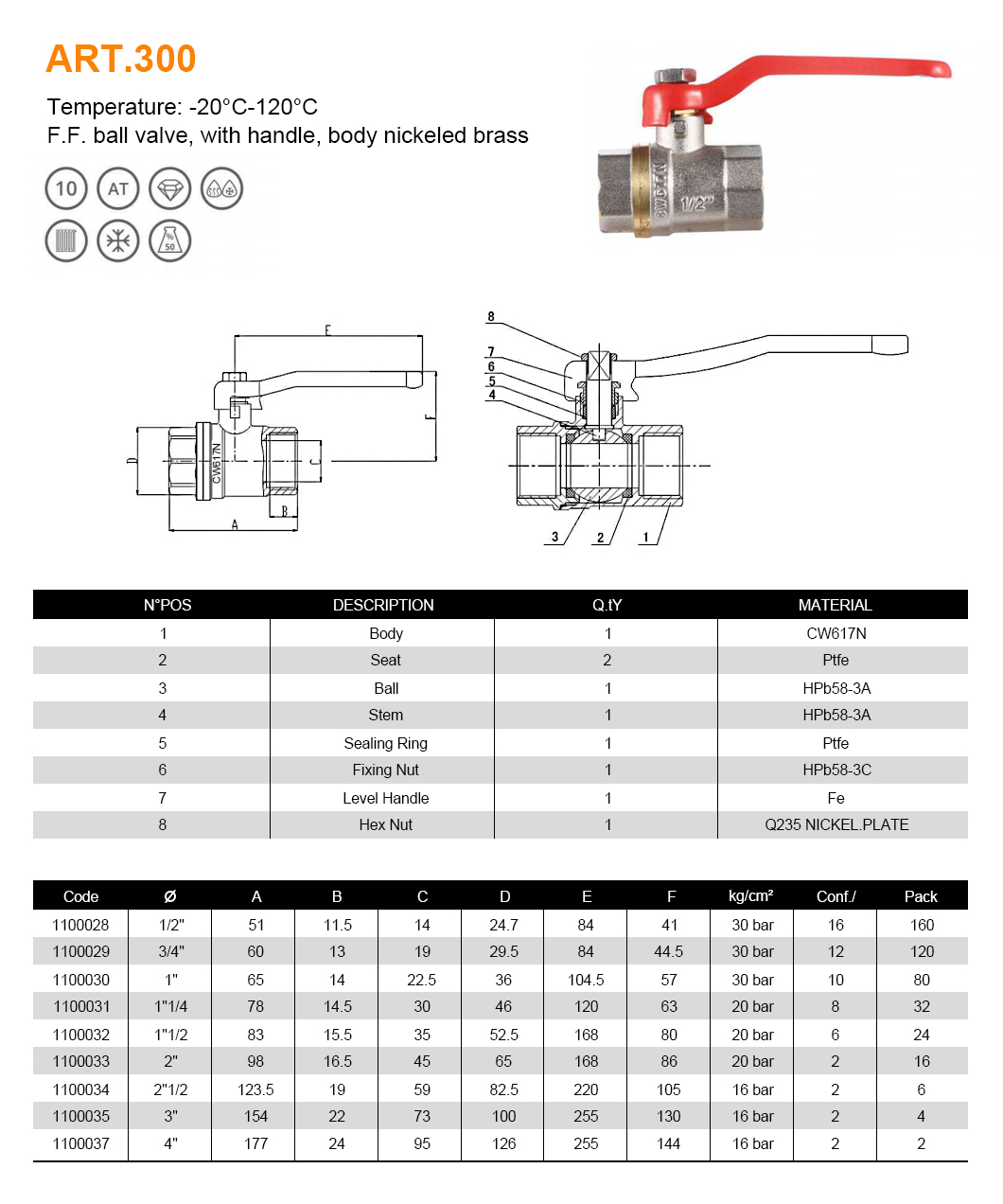

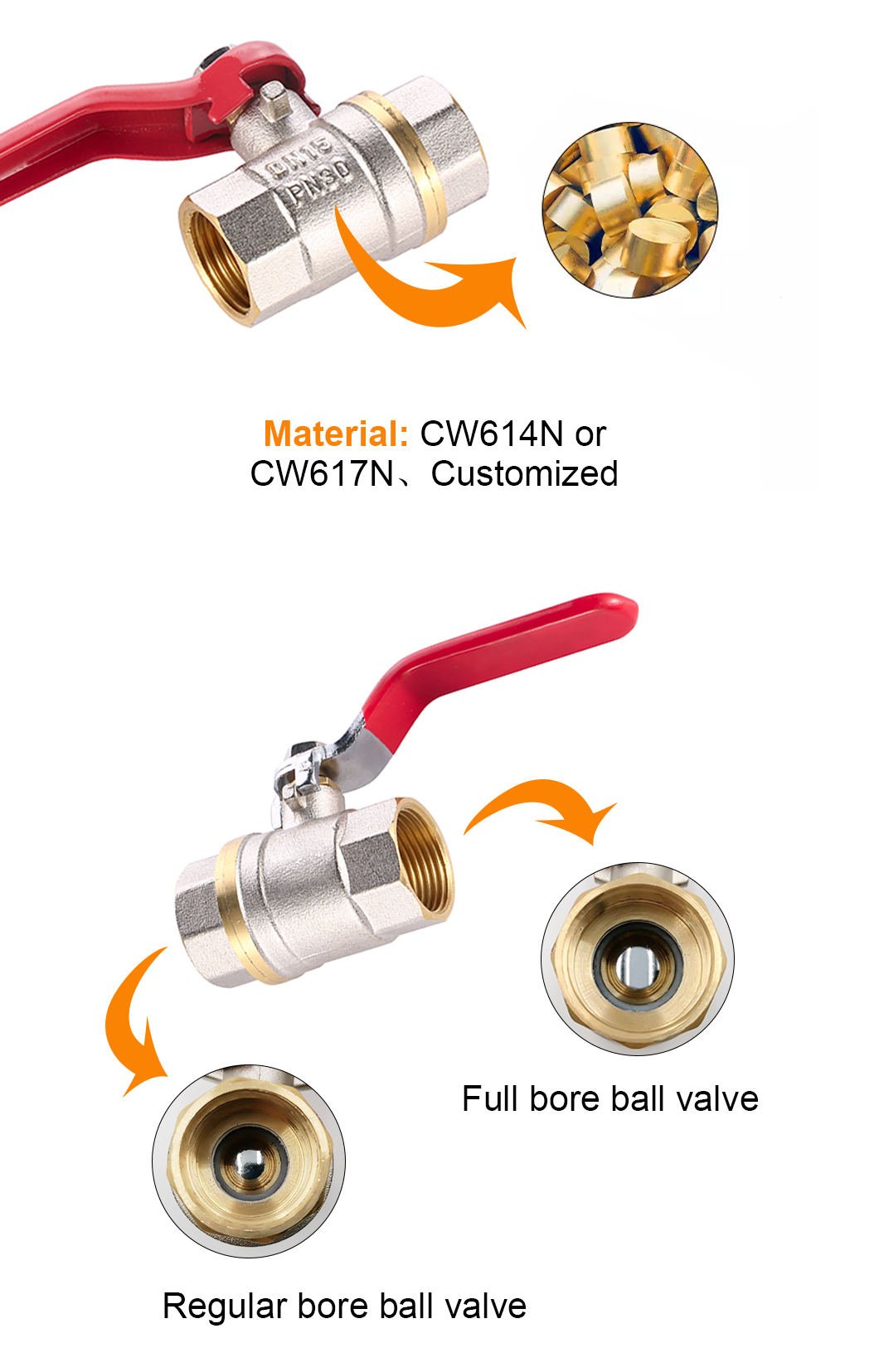

Materials

·BODY and SCREW PLUG-CW617N brass with external nickel-plated coating
·BALL-CW617Nchrome-plated brass
·STEM and PACKING GLAND-CW614N brass
·BALL and STEM SEALING-PTFE (Tefl on)
·HANDLE-carbon steel with red or blue PVC sleeve or aluminium with red or blue paint coating

Instalation Of Ball Valves For Gas And Water Systems- Instruction

Ball valves can be fitted in vertical.horizontal and inclined pipelines.operating in either "fully opened"or"fully closed"positions.

Before instalation, ensure that the elements to be connected are clean.Seal threaded connections to ensure durable,tight connection (examples of sealing solutions:

Tefl on tape,seal cord.thread sealing compound);apply the sealant to male-threaded elements.Insteell taps and valves in
"fully onened" nosition. using non-locking spanner only on the threaded socket end into which the nine isfi tted.

Tiahtening hoth threader socket ends in two opposing directions may result in permanent valve damage(leakage).

Do not fit valves with female-threaded ends on shelves at the thread edge.After instalation,do not apply bending stress to the valve,

and should the risk of bending stress occur,support the valve on both sides.

Product name	Brass Ball Valve
color	Double Color
Healthy	environmental friendly ,Hygienic and non-toxic
material	Brass
Discount	Available
connector	female/male connecting
delivery time	10-20 days after payment
