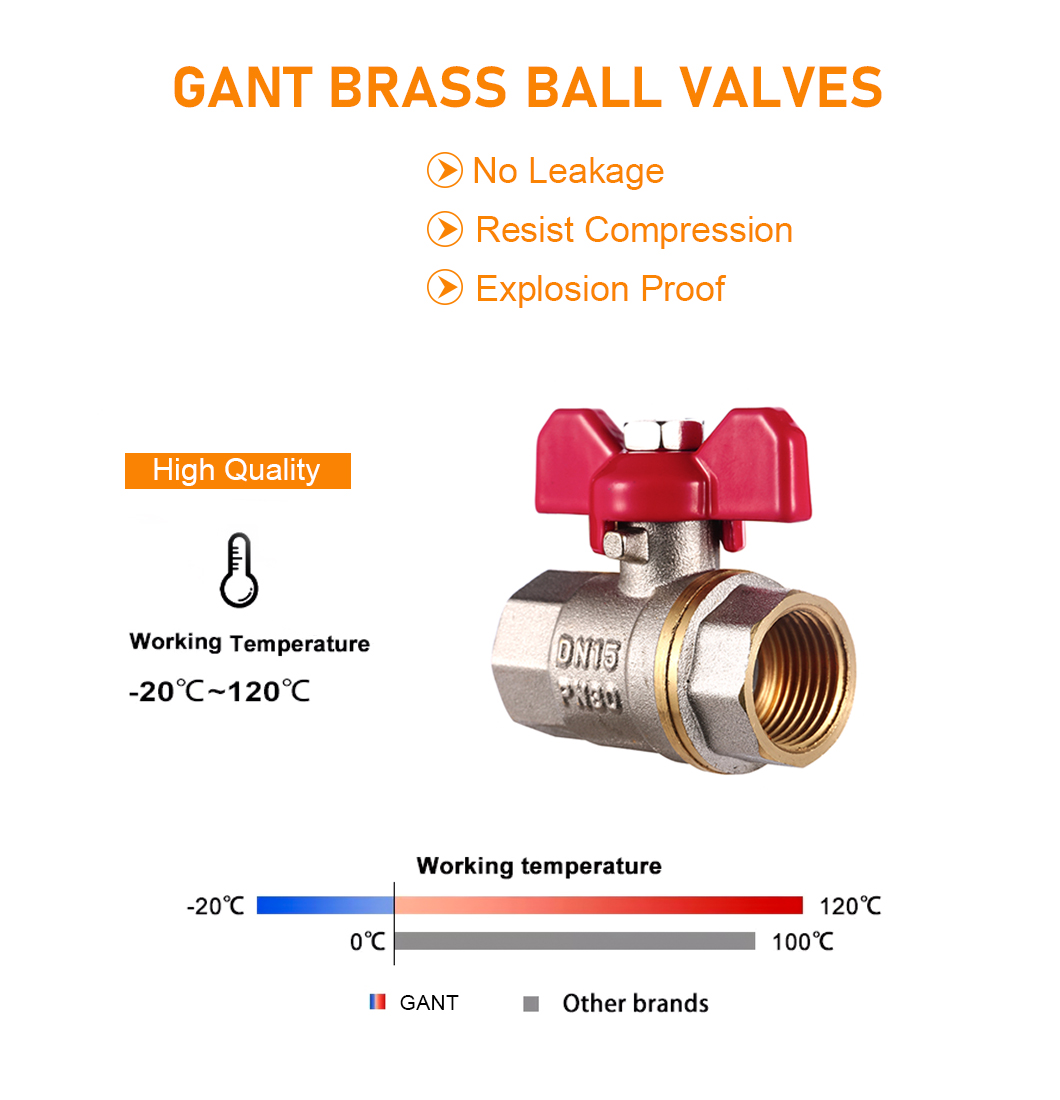

High Quality Red Butterfly Handle Female Male Thread Whole Body Silver Color Brass Ball Valve

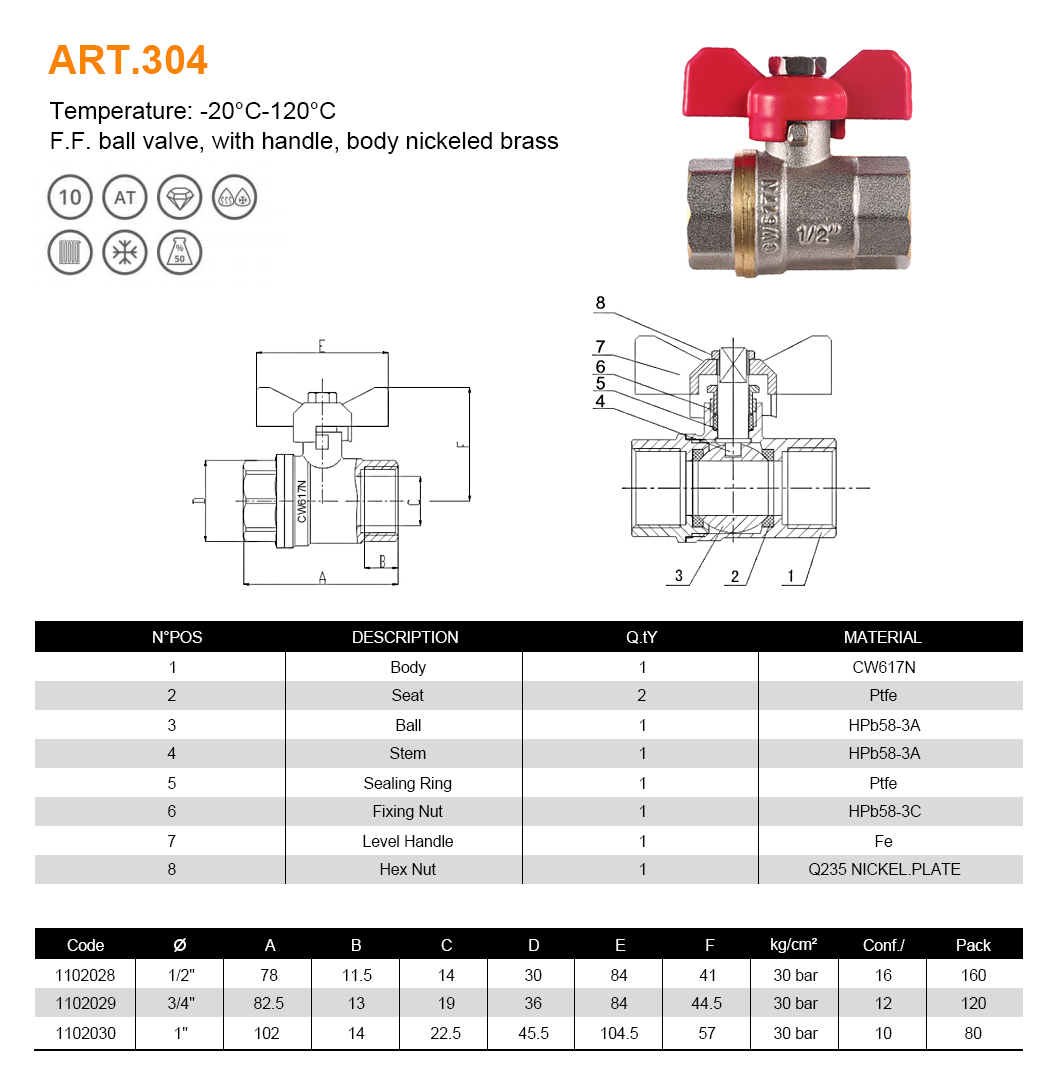

ART.304
This brass ball valve with a red butterfly handle features female to female T handle and full port chrome ball, ensuring optimal water flow and easy control. Its heavy-duty, lead-free construction and leak-free joint make it ideal for 2-way flow and in-line usage scenarios.
Quantity
Product Information
This high-quality brass ball valve boasts a full port chrome ball that allows for optimal water flow, making it perfect for a variety of 2-way flow and in-line usage scenarios.
It features a female to female T handle and is constructed with heavy-duty, lead-free forged brass for superior quality and durability.
With its vinyl grip T-handle and 1/4 turn shutoff design, this valve offers easy control and can be securely and leak-free connected thanks to its Fip connection.
Its brass body construction also ensures compliance with industry standards.
This ball valve is a must-have for anyone seeking superior quality, reliable performance, and easy control.
Application
GANT System ball valves are designed for controlling the flow of:
-hot and cold water supply systems(including drinking water)
-central heating systems(water in the central heating system should meet the requirements of the PN-C-046071993
standard)
-cooling and solar systems filled with 50% glycol solution
GANT System ball valves can be fitted in vertical,horizontal and inclined pipelinesat any position.Serving as shut-off
valves, GANT ball valves can operate either"fully opened"or"fully closed".
Additionally,the PHA-006 ball valve is fitted with a filter insert,which enables the mechanical extraction of
contaminants.It should be insteelled in the direction of f ow.Instalation must allow freegravitational separation of
impurities in the filtering part;recommended position of the valve:"plug of the filter element pointing downwards"
Characteristic Features
.Robust thickened walls resistant to bending and torsion,increasing durabilityverifi ed by in-house lab tests on a ball
valve testing machineaccordingtothe PN-EN13828 standard
·Sturdy body with a high safety factorresistant to internal pressure

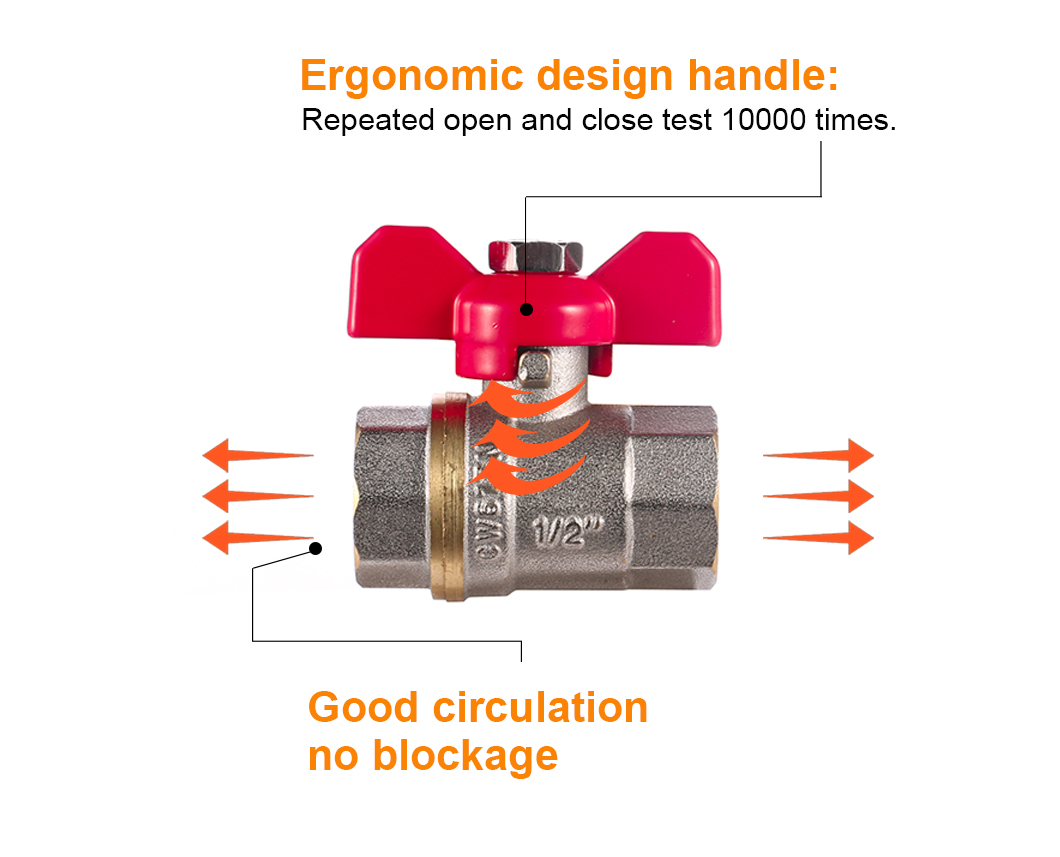

·Ergonomic and durable handles and tee handles
·High capacity-higher than the recommended standard

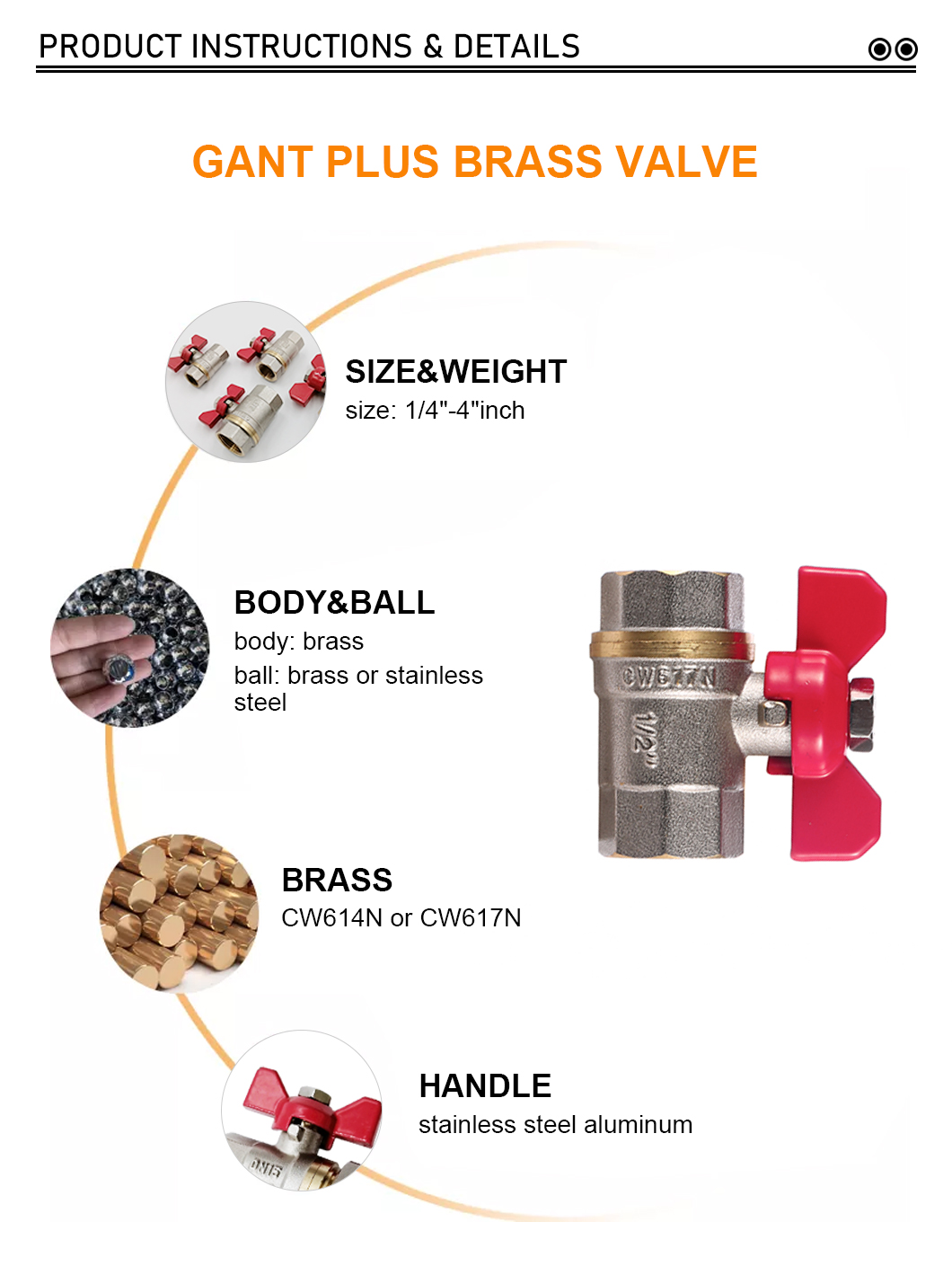

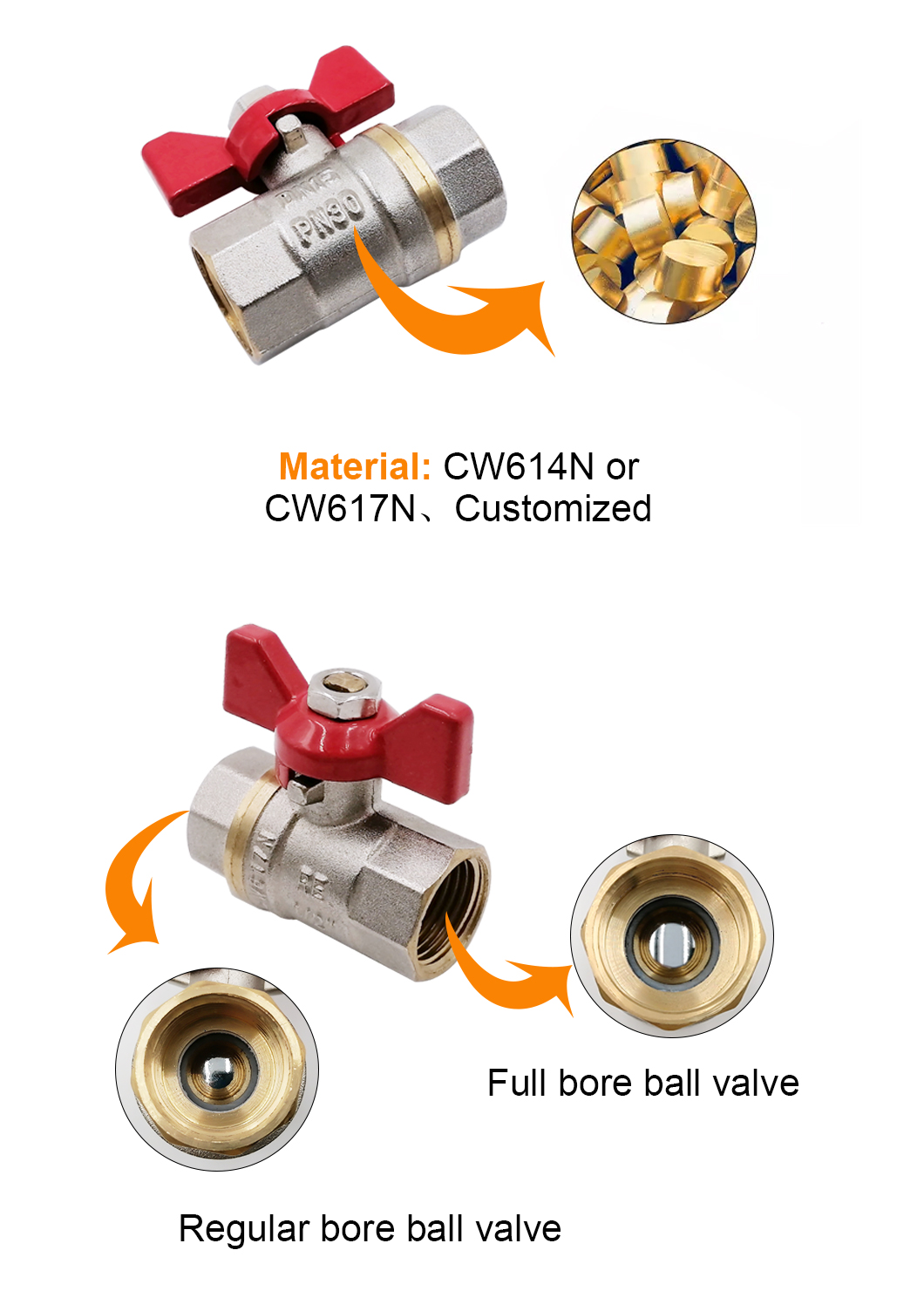

High-quality European brass:CW617N and CW614N
·Protective outer coatings to protect the valve from adverse external factors.Nickel-plated coating is NOT allowed inside
the valve due to contact with drinking water
Brass Ball Valve
Brass ball valve is an important fluid control device,It has a wide range of applications in various fields such as industry, commerce and household.
Brass ball valve is an important fluid control device,It has a wide range of applications in various fields such as industry, commerce and household.
Its unique design has many advantages that make it ideal for fluid control.
Advantage:
1. Simple structure: The ball valve consists of a rotating sphere and two sealing surfaces. Its structure is relatively simple and easy to manufacture and maintain.
2. Quick switch: The operation of the ball valve is quick, just rotate 90 degrees, it can be completely closed to fully open, or vice versa.
3. Small fluid resistance: The internal channel of the ball valve is a straight-through design, and the resistance when the fluid passes is small, which can provide high flow capacity.
4. Good sealing: The ball valve adopts elastic or metal sealing structure, which can provide good sealing performance and reduce the risk of leakage.
5. Strong corrosion resistance: The ball valve can choose different material balls and sealing materials according to the requirements of the working medium to ensure that it has good corrosion resistance.
6. High temperature and high pressure resistance: The ball valve can adapt to the high temperature and high pressure working environment, and has high pressure resistance and heat resistance.
7. High reliability: the ball valve has high working reliability, flexible and reliable operation, and is suitable for long-term use and frequent switching occasions.
Advantage:
1. Simple structure: The ball valve consists of a rotating sphere and two sealing surfaces. Its structure is relatively simple and easy to manufacture and maintain.
2. Quick switch: The operation of the ball valve is quick, just rotate 90 degrees, it can be completely closed to fully open, or vice versa.
3. Small fluid resistance: The internal channel of the ball valve is a straight-through design, and the resistance when the fluid passes is small, which can provide high flow capacity.
4. Good sealing: The ball valve adopts elastic or metal sealing structure, which can provide good sealing performance and reduce the risk of leakage.
5. Strong corrosion resistance: The ball valve can choose different material balls and sealing materials according to the requirements of the working medium to ensure that it has good corrosion resistance.
6. High temperature and high pressure resistance: The ball valve can adapt to the high temperature and high pressure working environment, and has high pressure resistance and heat resistance.
7. High reliability: the ball valve has high working reliability, flexible and reliable operation, and is suitable for long-term use and frequent switching occasions.
1. Good corrosion resistance - brass is the main component and its chemical properties are relatively stable. In the general water medium environment, the brass ball valve can resist the erosion of chemicals in the water such as chlorine, minerals, etc., and reduce the damage caused by corrosion. For example, in the household water supply system, the water may contain a certain amount of calcium, magnesium plasma, brass ball valve can be used for a long time under such water quality conditions without easily rusting, so as to ensure the sealing and service life of the valve.
2. Excellent sealing - The precise fit between the ball and the seat is the key to its good sealing performance. When the ball valve is closed, the ball is tightly attached to the seat, which can effectively prevent the leakage of the medium. This sealing method can achieve bidirectional sealing, whether under forward pressure or reverse pressure, can provide reliable sealing effect. In some fluid transportation systems with strict leakage requirements, such as chemical raw material transportation pipelines, even if the pressure in the pipeline is high, brass ball valves can also prevent the leakage of chemical raw materials.
3. Low fluid resistance - Due to the internal structural characteristics of the brass ball valve, its channel is an approximately circular through channel. When the fluid passes through the ball valve, after the ball is opened, the fluid can pass almost unhindered. Compared to other valves (such as globe valves), ball valves have a smaller flow resistance coefficient, which means that with the same pressure difference, the fluid flow through the brass ball valve is greater. In the water supply and drainage system, the use of brass ball valves can reduce the energy loss of water flow and improve the efficiency of water supply.
4. Easy to operate - Brass ball valve handle design makes its operation simple and fast. Under normal circumstances, the valve can be fully opened or closed by simply rotating the handle 90 degrees. This fast opening and closing feature is very useful in emergency situations, such as in fire fighting systems, which can quickly control the flow of water and carry out fire fighting operations in a timely manner. Moreover, the position of the handle can visually display the opening and closing state of the valve, which is convenient for the operator to judge.
5. High strength and durability - brass itself has a certain mechanical strength and can withstand a certain range of pressure. Under normal working pressure, brass ball valves will not be deformed or damaged due to internal pressure. In the industrial production process, some low-pressure gas or liquid transmission pipelines use brass ball valves, which can work stably for a long time, reduce the frequency of maintenance and replacement, and reduce costs.
Product Details
